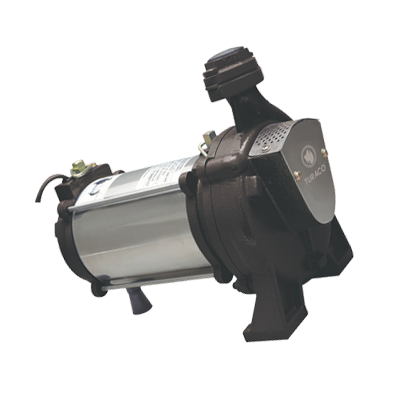

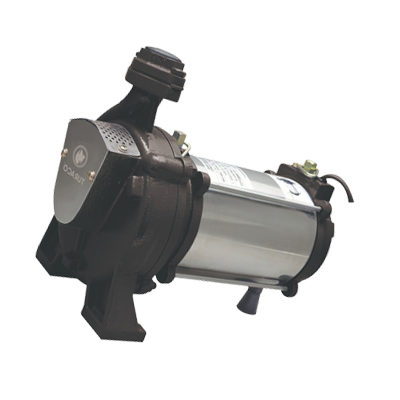

1.5HP / 1.1kW 25X25mm
  • DPOW 024
  • DPOW 024

1.5HP / 1.1kW 25X25mm

Openwell Submersible Pumps

  • Openwell Motor
  • Water Discharge : 10000 LPH
  • Total Head 14-40 Meters
  • Suitable for garden, multistoried buildings, apartments.

Inquire

Technical Data

Specifications

Water Discharge in litres per hour Head in Meters
4000 40
6050 35
7100 32
7500 30
7900 28
8300 26
8750 24
9050 20
9750 16
10000 14
Specifications

Exploded View

  1. Casing Bolt
  2. Casing
  3. Impeller
  4. "O" Ring
  5. Bracket
  6. Mechanical Seal
  7. Water Thrower
  8. Shaft
  9. Key
  10. Front Bearing
  11. Rotor
  12. Tie Rod
  13. Rear Bearing
  14. Stator
  15. Tie Rod Nut
  16. Frame
  17. Terminal Box Bottom
  18. Terminal Box Top
  19. Capacitor
  20. Connector
  21. Wave Washer
  22. End Cover
  23. Cooling Fan
  24. Cotter Pin
  25. Cooling Fan Cover
  26. Fan Cover Screw
  27. Non Return Value
  28. Suction Flange Bolt
  29. Suction Flange
  30. Dummy
  31. Delivery Flange Bolt
  32. Delivery Flange
  33. Delivery Flange Washer
  34. Water Filling Plug
Specifications

Construction Features

  1. Motor Frame Size: 63F/71F/80F/90F
  2. Frame Material: Aluminum Extruded / Cast Iron / Stainless Steel.
  3. Supply: 1@, 230V, 50Hz
  4. Motor: 2880 RPM CSR Motor with or without T.O.P.
  5. Enclosure Type: TEFL
  6. Internal Protection: Ip58
  7. Insulation:Class B & Class F
  8. Bearing : Double Shield Ball Bearing / Ball Bearing ZZ / LTB Ball Bearing
  9. Stamping: CRCA Steel
  10. Winding: Enameled copper wire/PVC Insulated Copper wire.
  11. Mechanical Seal : Carbon Ceramic
Features

Operating Limits

  1. Lifting Water Temperature up to 40 C
  2. Ambient Temperature up to 40 C
  3. Supply: 1@, 230V, 50Hz
  4. Clear Cold Fresh Water without Foreign Particles
Operating Limits

About Turaco Self Prime Monoblock Pumps

Turaco Self Priming Pumps are designed for household application and trouble-free operation. Best quality material and components are used to give a noise-free, vibration-free running for a long time. It is very important to choose the right model as per requirement. This product catalog with complete pump details will help you to choose the correct model as per your requirement. Installation of the Pumps by a proper qualified Plumber is very important to ensure its performance.

SPECIAL FEATURES APPLICATION
  • Lower Power Consumption
  • Noiseless Operation
  • Longer working Life
  • More Water Discharge in its class
  • No need to fit foot valve
  • More suitable for wide voltage operation
  • Building Curing Purpose
  • Domestic Water Lifting
  • Small Lawn watering
